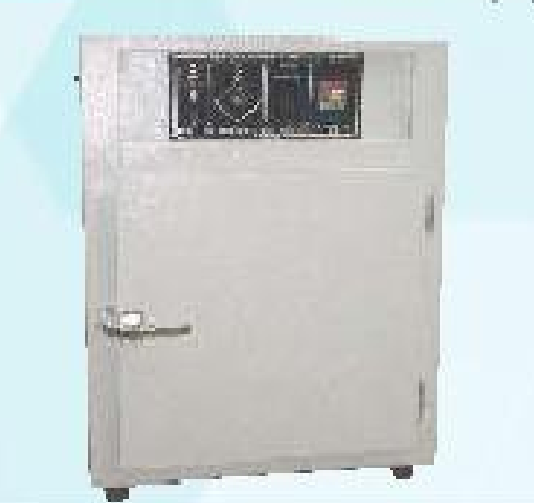

Oven Universal (MOU- 250)
Temperature is controlled by PID Digital Temperature Controller from RT+5°C to 250°C +1°C. Beaded Heating Elements are placed in ribs at the bottom and sides with air circulating fan. Double walled, inside made of Stainless Steel 304 & outer body of Mild
Spin Coating Unit (MSC - 10)
Facility for interlocking with Vacuum Pump. Tubing for Vacuum. Gas Purging Attachment.. To operate on 230V + 10%, 1 phase 50HZ AC only. Vacuum Pump: Oil Free Diaphragm Type Vacuum Pump.
Programmable Spin Coating Unit (MSC - 10P)
Stainless Steel Working Chamber (removable), size 6 inch dia, with transparent photo resist lid with interlock safety switch.
Lipholizer / Freezer Dryer (MFD-6 / MFD- 12)
Vacuum drum having 22.8 cm dia and 25.4cm height is made up of non magnetic stainless steel with plexiglass top cover and incorporates 6/12 quick seal valves/ports for manifold drying. Double stage vacuum pump with gas blast giving vacuum I x 10-3 torr on
Deep Freezer - Horizontal (MDH)
Deep Freezer designed for quick freezing & storing at low temperature.
Deep Freezer- Vertical (MDV)
Deep Freezer designed for quick freezing & storing at low temperature
Salt Bath Furnace (MSB-1000)
Construction: Cylindrical in shape, having top opening, with manual cover closing. Heating element are placed on the circumference and over the height. Insulation by ceramic fiber blanket with outer mild steel casing.
Vacuum Furnace (MVF-1000)
Vacuum Pump and Valve: Pumping rate: 200 It./min Vacuum Double stage pump 10-2 torr by mechanical pump (on pump head) KF-25 adapter and stainless steel pipe are connected between pump and tube flange with precision ball valve
Thermal Cvd Furnace (MCVD-11/14)
Flanges: Stainless steel 304 flanges on both ends, these are high vacuum flanges with double silicon 'O' ring and metal ring. On one and provision for gas purging through valve and hinge door or ease of placing sample. At other end vacuum KF-25 connection
Tilting Furnace (MTF-10)
Maximum Temperature : 1100°C Crucible Silicon Carbide Pot Capacity 10kg. (Aluminium) Thermocouple : K Type Temp. Controller : PID Digital Temperature Controller Power Relay : Contactor Control Panel : Separate Tilting : Manual Fabrication : Heavy Angle Ir
Cylindrical Furnace (MCF-11 (V/H))
The tube furnace comprises of Alumina tube of Dia 50mm and length 250mm, with hot zone of 100mm at the centre
Rectangular Furnace (MRF-100)
Inner muffle size: 24inch wide, 30 inch depth and 24inch high. Temperature of the furnace is controlled by programmable microprocessor based PID controller, (master-slave set up) with soft touch key pad and dual display of process and set temperature. Tem
