Advance Communication Lab training Module (ME 773)
Observe Time Division Demultiplexing of PCM data. Clock regeneration by PLL & signal recovery in 3 connecting modes between Transmitter and Receiver

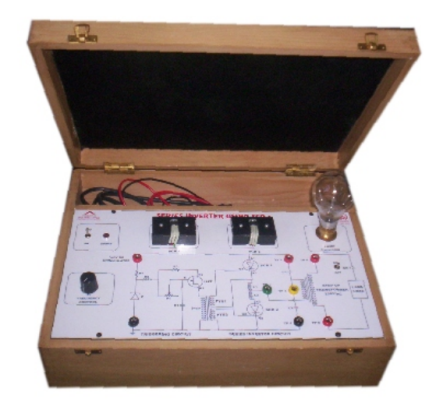

Series Inverter using SCR’s (ME 809)
To Study the Conversion of DC To AC by use of Series Inverter

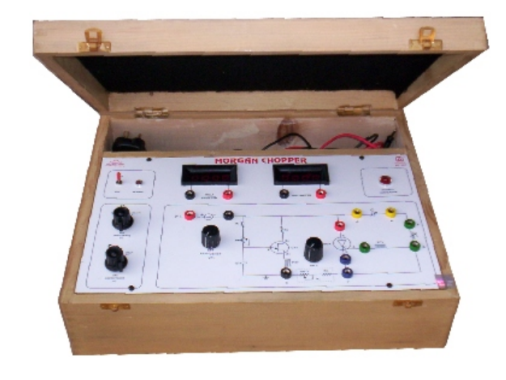

Morgan Chopper (ME 808)
To Study the Working of Morgan Chopper & Observe various waveforms on CRO.

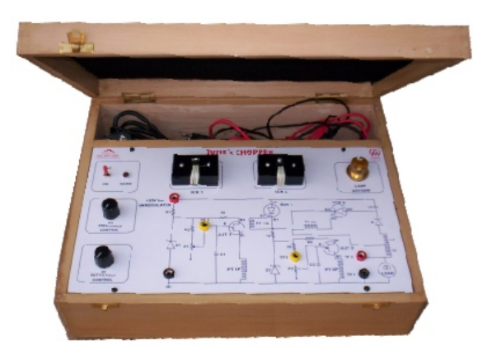

Jone’s Chopper (ME 807)
To study the working Jone’s Chopper & observe various waveforms on CRO

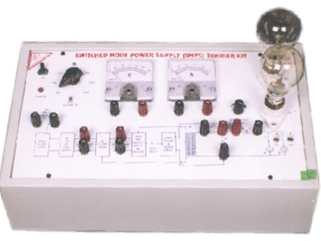

SMPS Trainer Kit (ME 806)
Switched Mode Power Supply (SMPS) using high frequency transformer & high switching transistor has been designed to study the line and load regulation characteristics of SMPS power supplies.

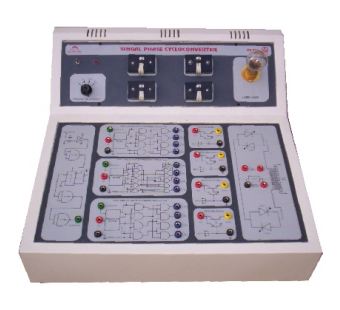

Single Phase Cyclometer (ME 804)
Designed to convert line frequency to 1/2,1/3 & 1/4 of its value & observe the wave form on CRO Power supply +9volt DC for reference.

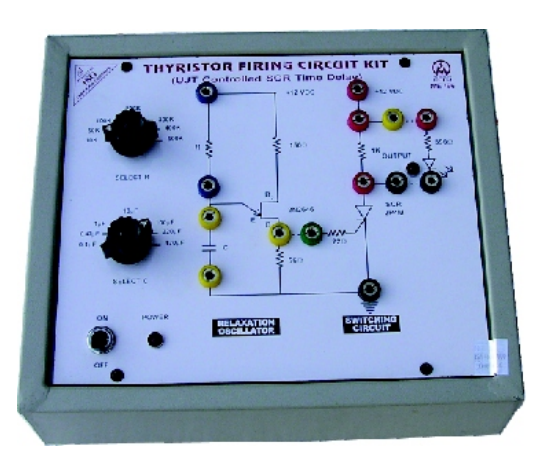

UJT Controlled SCR Time Delay (ME 796)
Thyristor Firing Circuit Kit Design to introduce time delay using UJT & Observe output on LED

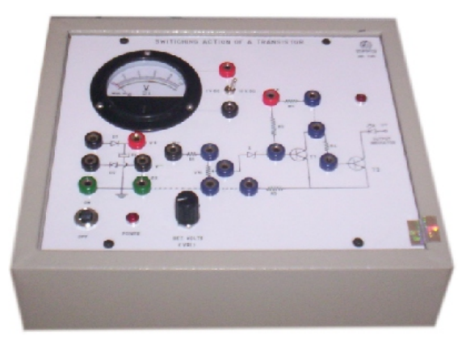

Switching Action of a BJT (ME 795)
To Study the Switching of Action of a BJT & Observe the output on LED.

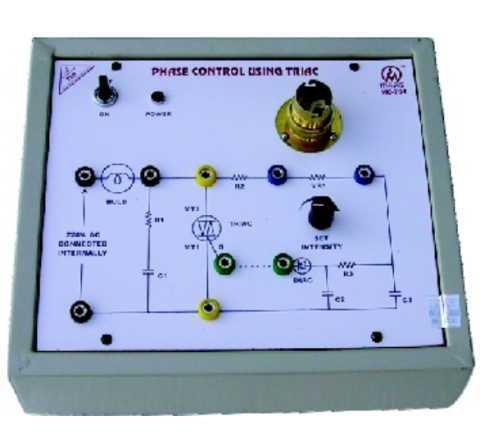

Phase Control using Triac (ME 794)
To control phase angle by Triac& observe the wave form on CRO.

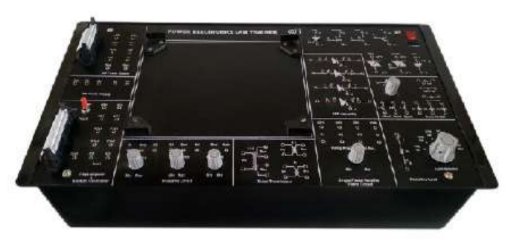

Advance Power Electronics Lab Trainer (Bread Board Model) (ME 790A)
To study application of Thyristors (SCR, MOSFET, IGBT, UJT, PUT, DIAC & TRIAC).

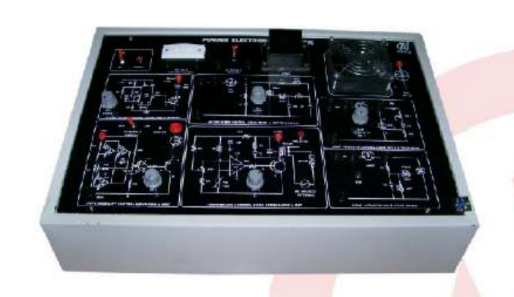

Power Electronics Trainer with 6 Applications (ME 790)
To study DC fan speed control using PWM & MOSFET. To study light intensity control using PWM & IGBT.

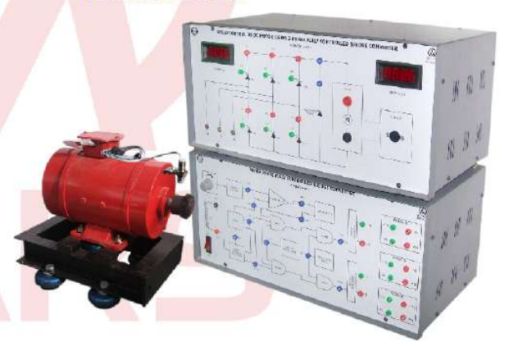

Speed Control of DC Motor using 3 Phase Fully Controlled Converter (ME 802M)
The setup comprises of firing unit & power unit
