Pitot Tube test Rig (GN 7210)
To find the point velocity at the center of a tube for different flow rates
Product Overview
To find the point velocity at the center of a tube for different flow rates
To find the co-efficient of pitot tube
To find the point velocity at the center
of a tube for different flow rates
To plot velocity profile across the cross
section of pipe
Flow Channel: 200mm long made of clear acrylic
conduit with attachment of pointer gauge.
Pressure Measurement: Provided "U" Tube differential
manometer for head loss measurement
Measuring Tank: 300mm x 300mm x 300mm (LxBxH)
Sump Tank: 600mm x 300mm x 300mm (LxBxH)
Tanks made of SS sheet
For more details please refer datasheet.
Technical Specifications
To find the co-efficient of pitot tube
To find the point velocity at the center
of a tube for different flow rates
To plot velocity profile across the cross
section of pipe
Flow Channel: 200mm long made of clear acrylic
conduit with attachment of pointer gauge.
Pressure Measurement: Provided "U" Tube differential
manometer for head loss measurement
Measuring Tank: 300mm x 300mm x 300mm (LxBxH)
Sump Tank: 600mm x 300mm x 300mm (LxBxH)
Tanks made of SS sheet
For more details please refer datasheet.
Talk To Our Technical Experts
Related Products

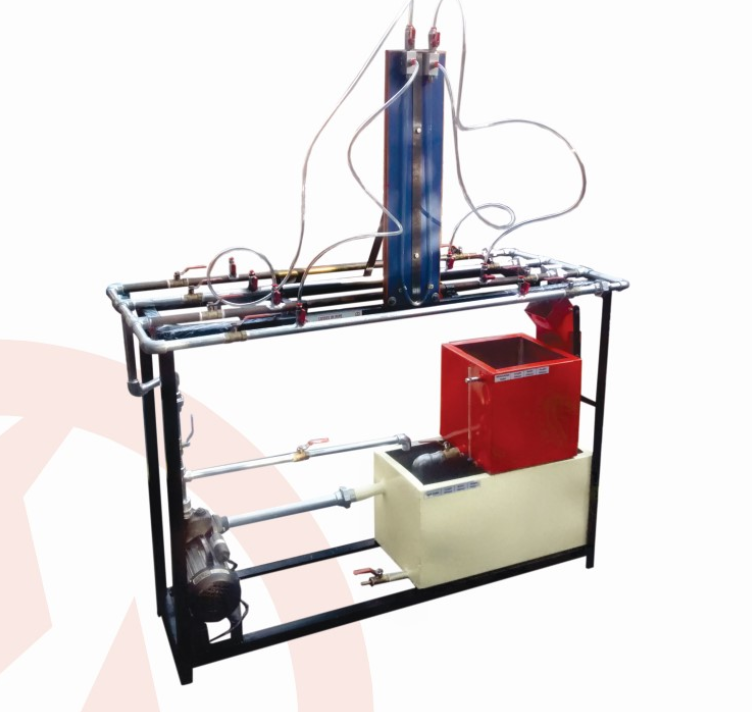

Loss Due To Friction In Pipe Lines (GN 7230)
