High Voltage Digital Insulation Tester (110V) ( 380395)
With the Extech 380395, measure insulation resistance up to 60 GΩ with test voltages of 500 V, 1000 V, 2500 V, and 5000 V.
Product Overview
With the Extech 380395, measure insulation resistance up to 60 GΩ with test voltages of 500 V, 1000 V, 2500 V, and 5000 V.
With the Extech 380395,measure insulation resistance up
to 60 GΩ with test voltages of 500V,1000V,2500V and 5000V.
Its features include polarization index measurement (PI),
dielectric absorption ratio measurement (DAR), AC/DC voltage
measurement up to 600 V, peak and relative functions,
and a 1 min to 15 min timer function for IR measurements.
Comes with test leads, eight C batteries, 120 V AC adaptor,
heavy duty carrying case, and a user manual.
Insulation Resistance Basic Accuracy: ±2.5% of reading
Insulation Test Voltage 500V, 1000V, 2500V, 5000V
Resistance: 0 to 600Ω
DC Voltage Basic Accuracy: ±1% of reading
For more details please refer datasheet.
Technical Specifications
With the Extech 380395,measure insulation resistance up
to 60 GΩ with test voltages of 500V,1000V,2500V and 5000V.
Its features include polarization index measurement (PI),
dielectric absorption ratio measurement (DAR), AC/DC voltage
measurement up to 600 V, peak and relative functions,
and a 1 min to 15 min timer function for IR measurements.
Comes with test leads, eight C batteries, 120 V AC adaptor,
heavy duty carrying case, and a user manual.
Insulation Resistance Basic Accuracy: ±2.5% of reading
Insulation Test Voltage 500V, 1000V, 2500V, 5000V
Resistance: 0 to 600Ω
DC Voltage Basic Accuracy: ±1% of reading
For more details please refer datasheet.
Talk To Our Technical Experts
Related Products

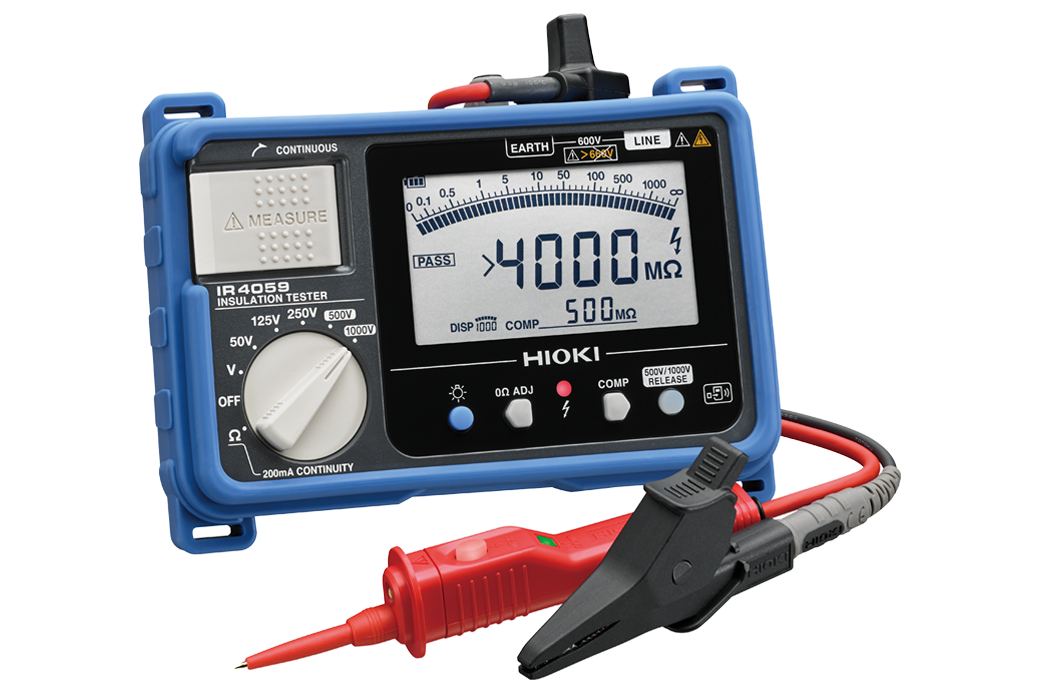

Digital Insulation Tester (IR4059)
Quick Response Comparator Offering Reading Stability in High-speed Digital Format
Analog Insulation Tester (IR4018)
The IR4018 is a single-range, 1000V/2000MΩ analog insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing. CAT III 600 V

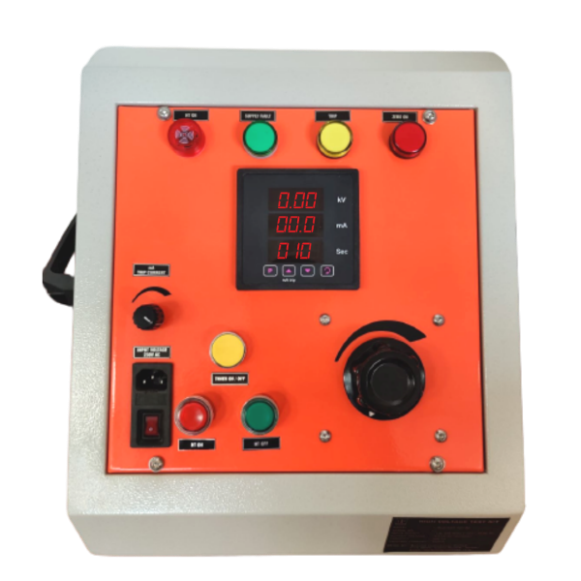

Digital Insulation Tester (Rish HVT 5kV AC)
The Rish HVT 5kV AC offers a 5kV test voltage to determine the withstand strength of electrical insulation for the normally occurring over voltage transients.

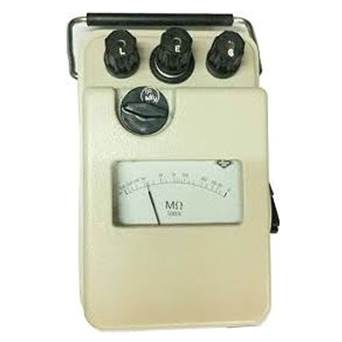

High-Voltage Insulation Tester (ITHV_Series)
